Customized Curved Stairlifts

Home Curved Stair Lifts Customized Curved Stairlifts

Customized Curved Stairlifts

Customized curved stairlift runs on the track which can be mounted close to the hand rail side or close to the wall side. It will not ruin the construction of the house,especially suit for the houses already decorated.

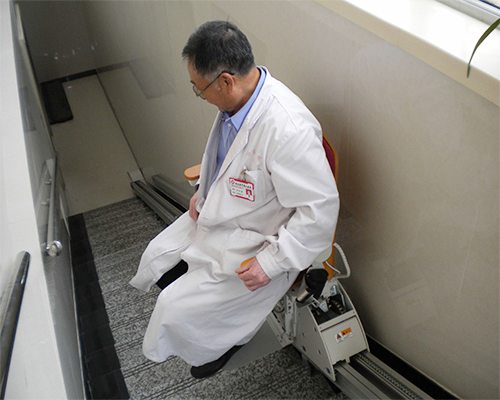

Customized curved stairlift offers a good solution to the elderly and those with reduced mobility up and down the stairs inconvenient .



Curved Stair Lifts Tags: , ,

Description

Customized curved stairlift offers a good solution to the elderly and those with reduced mobility up and down the stairs inconvenient .  It runs on the track which can be mounted close to the hand rail side or close to the wall side. It will not ruin the construction of the house,especially suit for the houses already decorated.

Electric type is most considerable type with many good offerings such as easy to install and indeed quite practical to use.

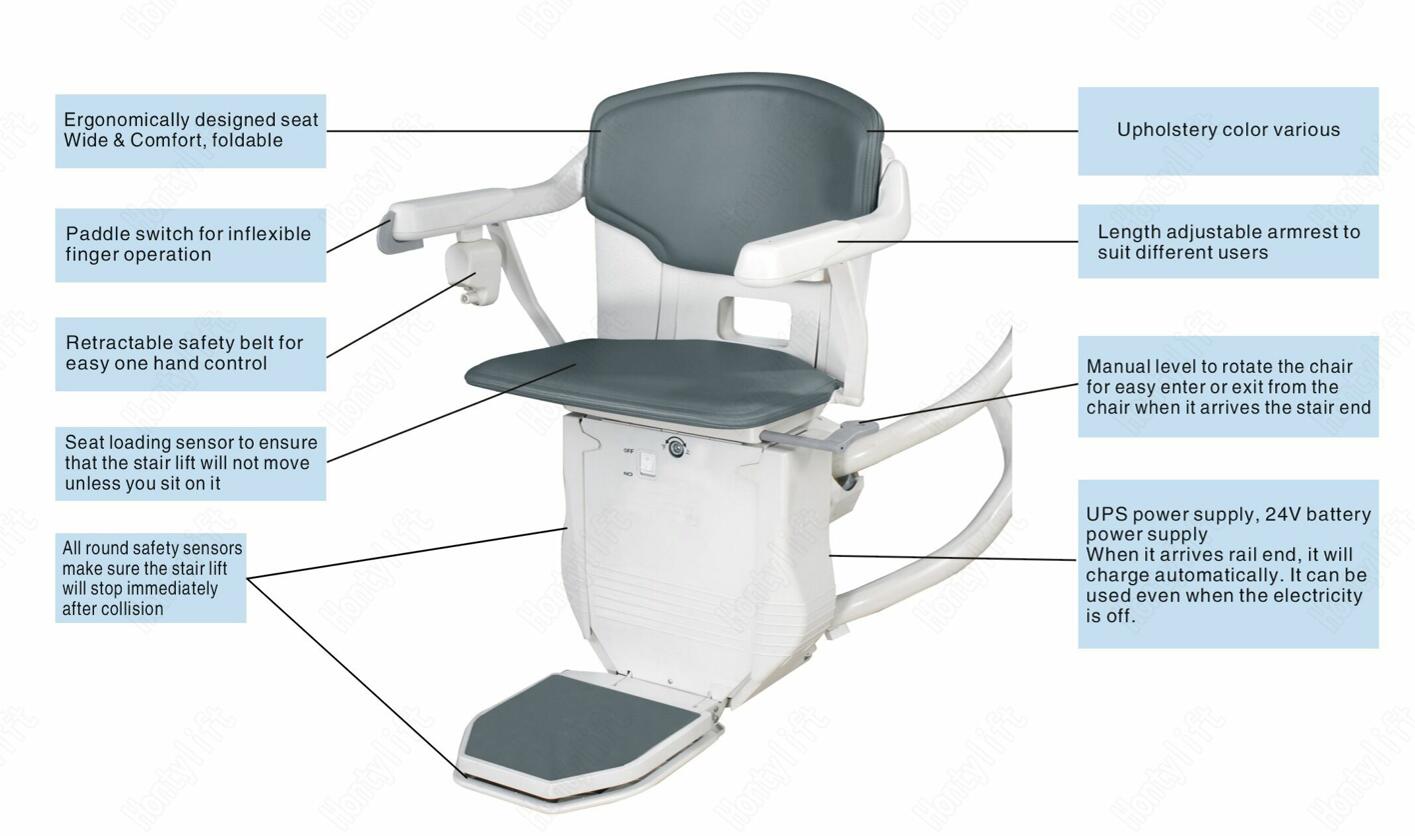

Main features

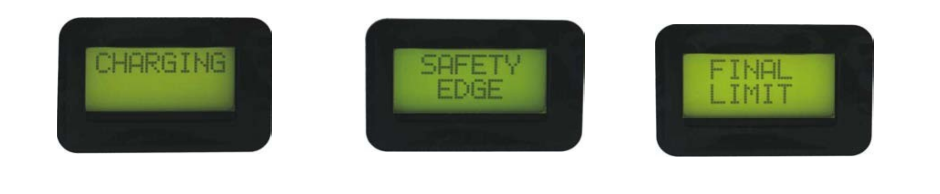

1.LCD status and diagnostic display

LCD display will real-time display seat elevator running state, even if encounter problems during the operation of also don’t have to worry about, you can according to the information shown in the LCD display control user manuals to diagnosis of error conditions, common problems don’t have to call and wait for after-sales service engineers, can be easily diagnosed at home, and back to normal operation.

 2.Sensitive safety induction device
Forty safety switches are installed on both sides of the pedal and chassis. When obstacles are encountered on the edge of the pedal and both sides of chassis during the operation of the seat elevator, it can be sensitively sensed and safely stopped. After obstacles are cleared, it can be restarted to resume normal operation, ensuring the absolute safety of your use process.
3.Overspeed safety protection system.
Independent research and development of the security protection system has patented innovation tachycardia, seats in the process of elevator running if you run faster than the system set up by the safe speed, the machine will stop running immediately cut off the power supply and mechanical brake, to ensure the absolute safety, this case maintain/after-sales service engineer as you need to contact you, to restore its normal use.

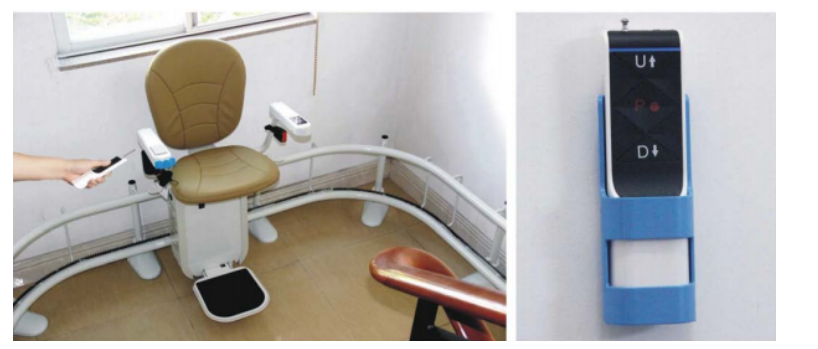

4.Intelligent call service system
Humanized intelligent call service system, is a key to achieve the industry’s first can call the seat of the elevator production service providers, the use of safe and reliable password or electronic key to start the call, floors clear display screen seat elevator floor position and running state, you can be in any floor easily call to your side, are always at your service.
Specification
Safety load
120kg
Noise(on max load)
70dBA
Rail max rising angle
52°
Distance between stair surface and rail
30mm
Rise speed
6.8m/min
Drive motor power
200W
Steel tube diameter of rail
45mm
power
2×12V-7Ah
Distance between wall and rail
95mm
Driving mode
Gear and track
