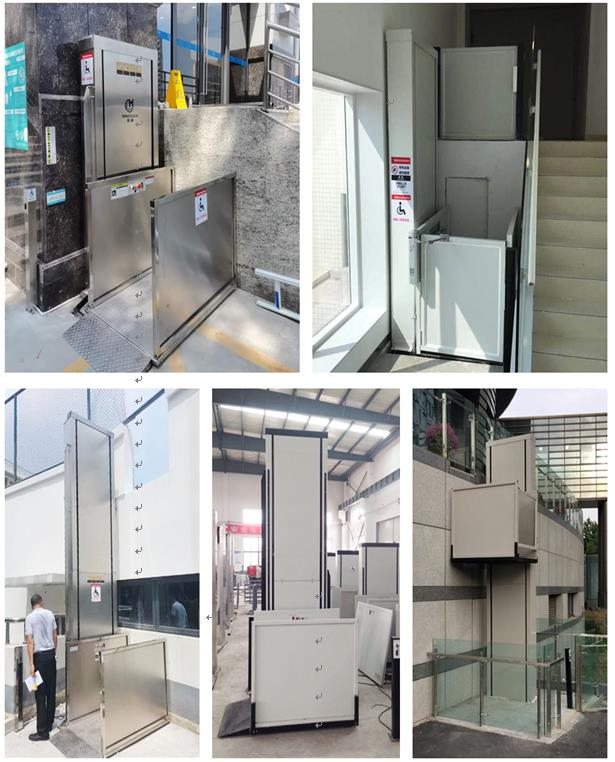

Electric wheelchair stair lift is specially designed for the disabled, elderly,and others with reduced mobility who cannot climb stairs. The common loading capcaity of the standard models is 250kg (For 2 or 3 people). So far, Aplus machinery can manufacture the models with the lifting height from 1m to 10m with can meet the demands used indoor and outdoor.
Features and Advantages:
1. High security Guarantee: Equipped with emergency stop sytem and emegency descent system;
2. Easy to install and operate: Full set of installation videos and user manual available;
3. Easy to maintenance: High quality accessoires equipped and speical design for the structure;
4. Ecnomical and long service life;
5. Multiple control mode: Platform control panels; Stand Column controllers; Remote controllers.
| Technic Parameters and Functions | ||
| Voltage： | 220V/50HZ or Customized | |
| Overall Dimensions： | 1670mm(L)×1270mm(W)×
(lifting height+550)mm (H) |
|
| Lifting Height： | 20000mm (lifting height can be customized) | |
| The minimum height of the lifting base plate ： | 60mm from the ground | |
| Installation： | No Foundation | |
| Lifting Speed： | 60mm/s inverter control, soft start soft brake | |
| Max Loading： | 240kg | |
| Guard Form： | 90° or 180° configuration | |
| Drive： | Screw Drive | |
| Control SupplyVoltage： | 24V/DC | |
| Power： | 2.2kw 220V/AC | |
| Control： | Rocker Self-reset, Switch Operation | |
| Outbound Call Form： | The upper and lower outbound call columns are installed on the ground attached to the stop floor and the equipment is linked to the control platform, running up and down or controlled by remote control. | |
| Handril： | Matte space aluminum | |
| Environment： | Indoor & Outdoor | |
| Temperature： | -20°C—60°C | |
| Appearance： | Electrostatic spraying or stainless steel plate | |
| Color： | Customized | |
|
Safety Euipment |
Safety Rocker： | When the equipment runs up, the rocker will automatically tilt up to prevent the wheelchair from sliding out of the platform |
| Overload
Protection： |
Does not operate when overloaded | |
| Emergency Stop： | Press the emergency button switch to control the machine to run up or down. | |
| Emergency Descent： | Electric emergency descent | |
