L-150 screw-type barrier-free lifting platform is a vertical multi-functional lifting platform with steel structure frame and precision screw drive.
L-150 screw-type barrier-free lifting platform can be produced within the lifting range below 2000mm according to customers’ needings. Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It has the characteristics of novel design, safety and stability, beautiful appearance, low noise, low temperature resistance, etc. In line with ASME A18-1 and CSA-B613 standards, it is well received by domestic and foreign customers.
| Technic Parameters and Functions | ||
| Voltage： | 220V/50HZ or Customized | |

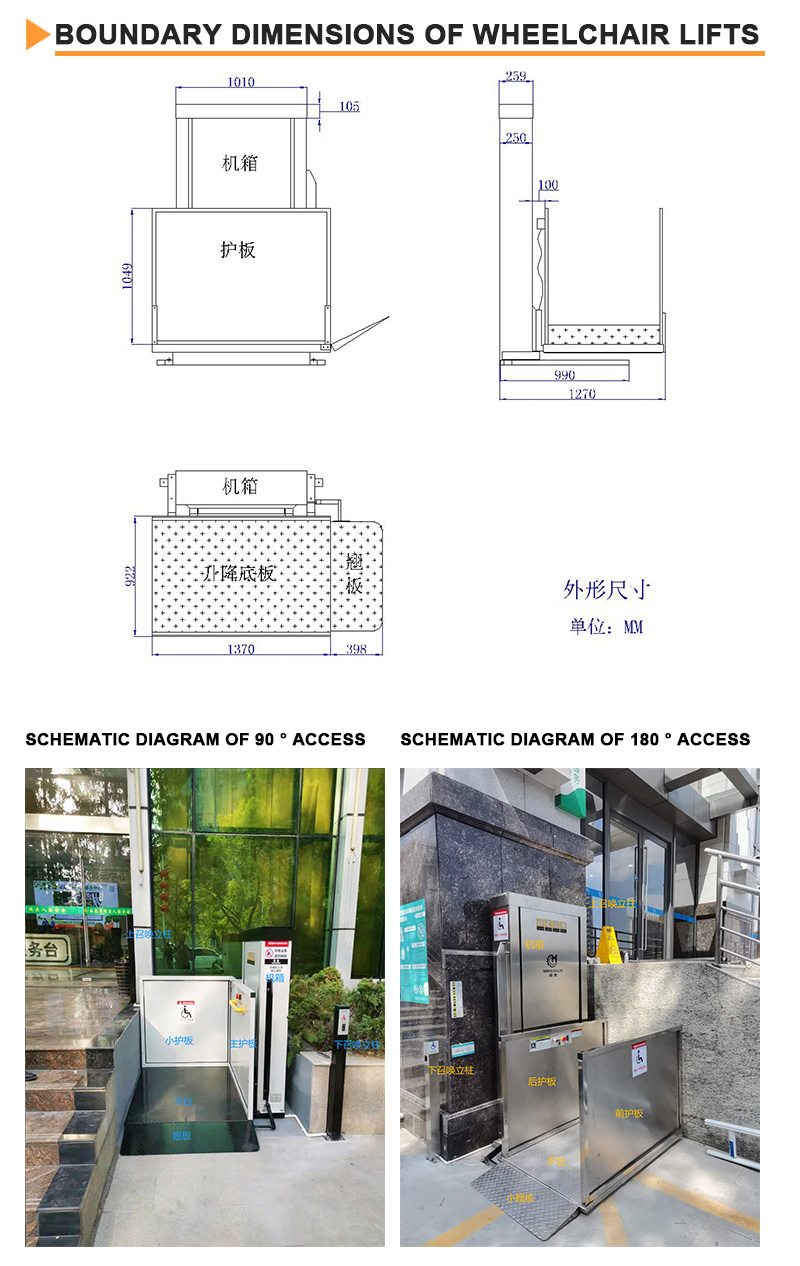

| Overall Dimensions： | 1670mm(L)×1270mm(W)×
(lifting height+550)mm (H) |
|
| Lifting Height： | 2000mm (lifting height can be customized) | |
| The minimum height of the lifting base plate ： | 60mm from the ground | |
| Installation： | No Foundation | |
| Lifting Speed： | 60mm/s inverter control, soft start soft brake | |
| Max Loading： | 240kg | |
| Guard Form： | 90° or 180° configuration | |
| Drive： | Screw Drive | |
| Control SupplyVoltage： | 24V/DC | |
| Power： | 2.2kw 220V/AC | |
| Control： | Rocker Self-reset, Switch Operation | |
| Outbound Call Form： | The upper and lower outbound call columns are installed on the ground attached to the stop floor and the equipment is linked to the control platform, running up and down or controlled by remote control. | |
| Handril： | Matte space aluminum | |
| Environment： | Indoor & Outdoor | |
| Temperature： | -20°C—60°C | |
| Appearance： | Electrostatic spraying or stainless steel plate | |
| Color： | Customized | |
|
Safety Euipment |
Safety Rocker： | When the equipment runs up, the rocker will automatically tilt up to prevent the wheelchair from sliding out of the platform |
| Overload
Protection： |
Does not operate when overloaded | |
| Emergency Stop： | Press the emergency button switch to control the machine to run up or down. | |
| Emergency Descent： | Electric emergency descent | |
