➤The stair home elevator lift adopts vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation.

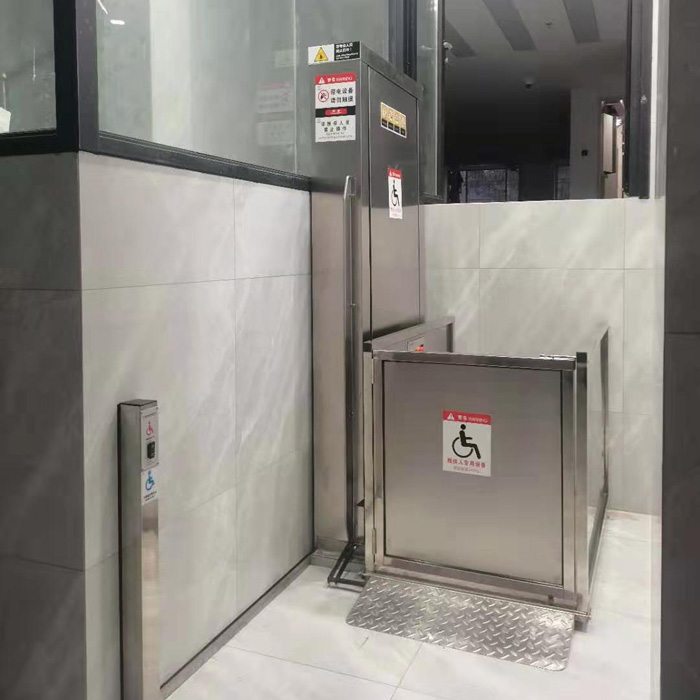

➤The vertical wheelchair platform lift for disabled people can be directly installed into the ground without architectural supporting pits and easy to operate.
➤Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
➤Emergency descending system: when there is no power or malfunctions, manually descend the lift.
➤It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource.
| Technic Parameters and Functions | ||
| Voltage： | 220V/50HZ , Customized | |
| Overall Dimensions of the Machine: | 1670mm×1260mm×（Lifting height+700）mm（L*W*H） | |
| Lifting Base Plate Size: | 1370mm（L）×920 mm（W） | |
| Max. Lifting Height： | 20000mm | |
| The minimum height of the lifting base plate ： | 60mm from the ground | |
| Installation： | No Foundation | |
| Speed： | 70mm/s-90mm/s | |
| Max Loading： | 240kg | |
| Fence： | 90°or 180° | |
| Drive： | Hydraulic Drive | |
| Control Supply Voltage： | 24V/DC | |
| Power： | 2.2kw 220V/AC | |
| Control： | Rocker Self-reset, Switch Operation | |
| Outbound Call Form： | The upper and lower outbound call columns are installed on the ground attached to the stop floor and the equipment is linked to the control platform, running up and down or controlled by remote control. | |
| Handril： | Matte space aluminum | |
| Environment： | Indoor & Outdoor | |
| Temperature： | -20°C—60°C | |
| Appearance： | Electrostatic spraying or stainless steel plate | |
| Color： | Customized | |
|
Safety Euipment |
Safety Rocker： | When the equipment runs up, the rocker will automatically tilt up to prevent the wheelchair from sliding out of the platform |
| Overload Protection： | Does not operate when overloaded | |
| Emergency Stop： | Press the emergency button switch to control the machine to run up or down. | |
| Emergency Descent： | Electric emergency descent | |
Nanjing Aplus Machinery Equipment Co, Ltd was founded in 2008 with the goal of delivering mobility and accessibility solutions to an underserved yet growing market of people with limited physical mobility. Nanjing Aplus Machinery Equipment Co. , Ltd is the leading manufacturer who is specialized in designing and producing the elevator for the disabled people.
