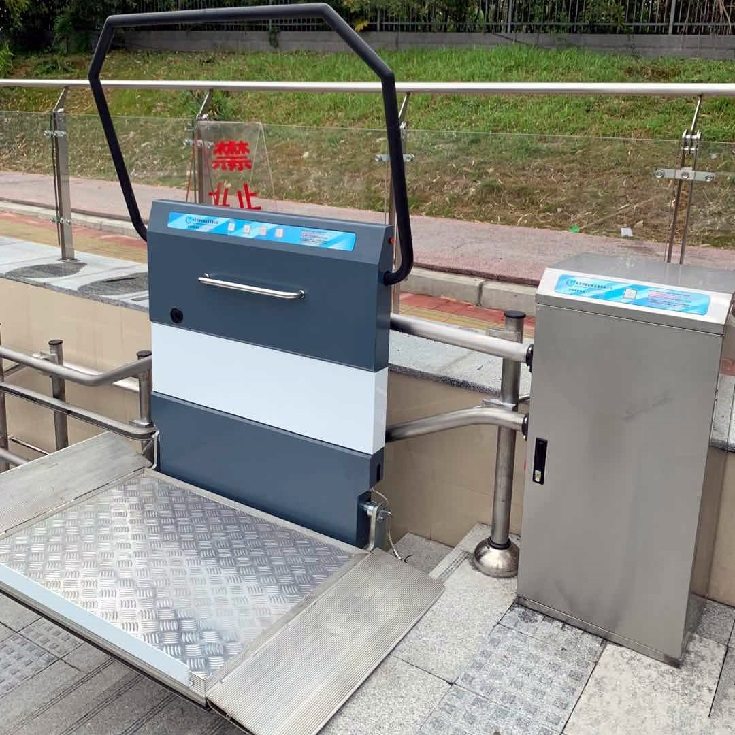

The wheelchair lift-inclined is designed to be applied to the stairs in homes and public places. Its compact and reasonable folding platform can be folded lightly when not in use, saving enough sapce for stairs without affecting the passage of others. It is an ideal solution for the passage of commercial and domestic barrier-free wheelchairs. It adopts a mature and universal rope wheel key drive mode, which is efficient, safe and stable, and cooperates with an intelligent control system to facilitate passengers to independently complete operations and wireless operations in the operating room.
| Platform load | 250kg | Platform weight | ≈150 kg |
| Operating surface size | 680mm*60mm (L*H) | Platform manned size | 1118mm*800mm |
| Side flap size | 885mm*260mm（L*W） | Side flap tiltable angle | -30°~ +60° |
| Guardrail height | 945mm | button height | 1088mm |
| Device thickness | 450mm±3mm | Platform Folding Thickness | 323mm±1mm |
| Internal voltage | Up to DC 25.2V | safe voltage | key response ＜0.2S |
Function, Configuration Description：
1、Fully automatic folding system, no human intervention is required in any deformation operation process.
2、Fully intelligent form judgment, the inclined wheelchair lifts can confirm its own state and
transform under any circumstances.
3、Anti-collision function, the guardrail can automatically detect the displacement and suspend the operation of the equipment to ensure the safety of passengers.
4、It can be folded by external force and can be deformed arbitrarily without power supply.
5、There are a variety of operation modes that can be switched, and different operation settings can be performed for different places.
6、With an emergency stop button, the equipment brakes immediately after pressing the emergency stop button in the running state.
7、With a help alarm bell button, you can press the help alarm bell to call the operator at any time. (optional)
8、All commands are transmitted wirelessly with no external wiring.
9、With full-featured operating instructions LCD screen.
10、With double-sided operation indicator
11、With full voice prompt
